Crossing from the historic brick streets of Old New Castle into the redeveloping Riverfront district of Wilmington, you traverse a geological boundary that few general contractors notice until excavation begins. The Coastal Plain sediments shift from stiff, overconsolidated clays of the Potomac Formation to loose alluvial silts and sands near the Christina River—a transition zone where groundwater sits barely 8 feet below grade. An excavation on the east side of Market Street requires a fundamentally different anchorage approach than one near the Brandywine Creek. The team analyzes these subsurface transitions before selecting a prestressed active anchor system or a passive ground anchor configuration. In Wilmington’s 39.7°N latitude climate, where freeze-thaw cycles penetrate 30 inches into exposed cut faces, the bond length calculations incorporate seasonal moisture fluctuations that affect the saprolitic soils common across New Castle County. Complementing the anchor design with a deep excavation monitoring program ensures that lateral movements stay within the 0.5-inch threshold specified for adjacent historic structures.
Anchor bond capacity in the Potomac Formation clays can vary by 40 percent across just 200 lateral feet, making site-specific proof testing a non-negotiable element of any Wilmington excavation design.
Technical details of the service in Wilmington Delaware
Typical technical challenges in Wilmington Delaware
ASCE 7-22 and IBC 2021 require seismic lateral earth pressure increments for retaining structures in New Castle County, where the spectral response acceleration at 1-second period exceeds 0.15g on Site Class D profiles. Wilmington sits within a region of moderate seismicity influenced by the Piedmont fault system, and the deep soft soil deposits amplify ground motions at periods that coincide with tall excavation support systems. An anchor designed without considering the kinematic interaction between the retained soil mass and the structural facing can experience a 20 to 30 percent load redistribution during a design-level earthquake. The most critical failure mode observed locally is progressive anchor creep in the Potomac Formation clays, where sustained loads near the ultimate bond capacity trigger time-dependent deformation that compromises the entire wall alignment. The engineering practice addresses this by limiting the lock-off load to 60 percent of the ultimate capacity in clay strata and specifying a sacrificial anode cathodic protection system where permanent anchors are required below the water table.
Our services
The anchor design package integrates subsurface investigation data with structural loading requirements specific to Wilmington’s geology. Each deliverable includes a corrosion protection specification, bond length calculation sheet, and a step-by-step proof testing protocol adapted to the site’s soil profile.
Tieback Anchor Design for Soldier Pile Walls
Full design of active prestressed anchors for temporary and permanent shoring. Includes global stability analysis, bond zone verification in Potomac Formation soils, and load distribution modeling for walls exceeding 20 feet in height.
Passive Ground Anchor Systems for Landslide Mitigation
Design of fully grouted passive anchors installed in weathered Piedmont rock slopes along the Brandywine Creek corridor. Corrosion protection detailing per IBC durability requirements for 75-year service life.
Anchor Proof Testing and Performance Verification
On-site supervision of sacrificial anchor testing to validate design bond stress assumptions. Includes incremental load-hold cycles, creep rate calculation, and final lock-off certification documentation for the building department.
Questions and answers
What is the difference between active and passive anchors in a Wilmington excavation?
Active anchors are post-tensioned at installation to apply a precompressive force to the retained soil mass, controlling lateral movement from the start. Passive anchors develop resistance only after soil deformation occurs. In Wilmington’s soft riverfront silts, active systems are preferred because they limit initial wall deflection to under 1 inch, critical when adjacent to century-old masonry foundations in the downtown historic district.
How deep do anchors need to penetrate for a 20-foot cut in Wilmington soils?
The total anchor length depends on the bond zone requirements. For a 20-foot cut in the Columbia Formation silts, the unbonded length typically extends 15 to 20 feet beyond the wall face to clear the Rankine failure plane, and the bonded length adds another 18 to 25 feet in competent soil. Total lengths of 35 to 45 feet are common, reaching into the denser sands or weathered gneiss bedrock that underlies much of downtown Wilmington at depths of 40 to 65 feet.
What is the typical cost range for anchor design services in New Castle County?
The design phase for a tied-back wall system in the Wilmington area generally ranges from US$950 for a single anchor verification on a small residential lot to US$3,410 for a complete multi-row anchor design package on a commercial excavation with proof testing supervision. The scope includes bond length calculations, corrosion protection specification, and stamped design drawings ready for City of Wilmington building permit submission.
How is corrosion protection handled for permanent anchors in Delaware’s coastal environment?

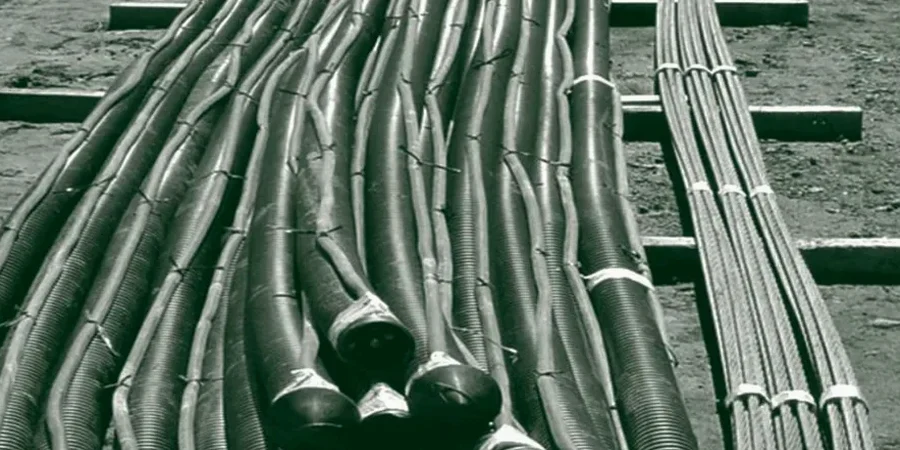

Permanent anchors below the water table in Wilmington receive Class I corrosion protection per PTI DC35.1 guidelines. This includes a corrugated plastic sheathing encapsulating the tendon over the full free and bond lengths, with epoxy-coated strand and factory-grouted internal interstices. A sacrificial anode system is specified when the soil resistivity measures below 2,000 ohm-cm, common in the brackish groundwater zones near the Christina and Delaware rivers.
