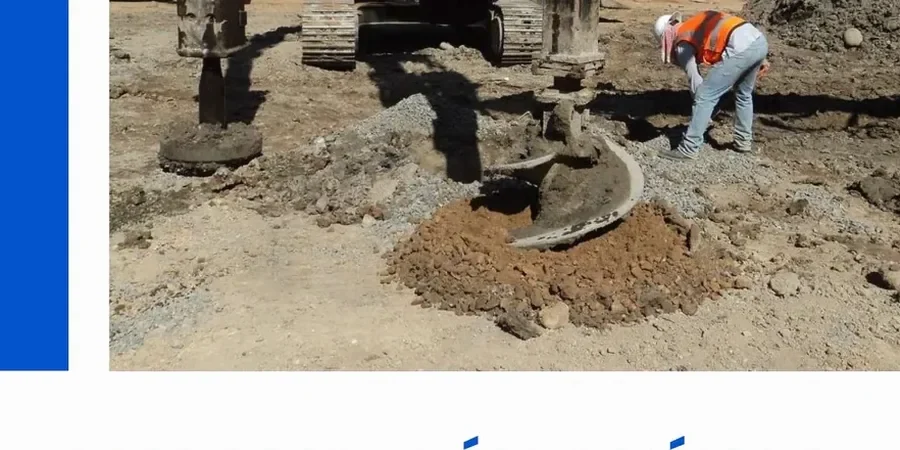

Stone Column Design for Weak Soils in Wilmington, Delaware

A project site near the revitalized Riverfront district encounters vastly different subsurface conditions than one in the Piedmont uplands north of the city. The Riverfront sits on compressible organic silts and historic fill along the Christina River, while areas near Brandywine Creek often reveal stratified alluvial sands. Stone column design bridges this gap when weak, saturated soils cannot support conventional shallow footings. By installing compacted gravel columns, the composite ground mass gains both bearing capacity and drainage, reducing post-construction settlement to tolerable limits. The technique proves especially effective where Wilmington's high water table complicates deeper excavation, making it a practical alternative to rigid deep foundations for mid-rise structures and warehouse slabs.

A well-executed stone column program can reduce total settlement by 40 to 70 percent compared to untreated ground, often at a lower cost than piling.

Technical details of the service in Wilmington Delaware

Wilmington's early industrial expansion along the Christina and Brandywine rivers left a legacy of hydraulic fill and debris-laden layers beneath many downtown parcels. That history shapes modern geotechnical practice: stone column design must account for unpredictable lenses of loose sand and soft clay that can undermine a uniform bearing stratum. Our approach combines in-situ testing with analytical methods such as Priebe's method to estimate settlement reduction and stress concentration on the columns. A typical installation sequence begins with CPT testing to map the compressible zone continuously, defining column length and diameter before construction. Vibratory displacement or bottom-feed methods are selected based on proximity to vibration-sensitive structures. Quality control includes modulus load tests on isolated columns and group columns to verify the design assumptions under service loads.

Load transfer platforms distribute stress between rigid columns and surrounding soil
Column diameter typically ranges from 0.6 to 1.2 meters depending on depth and soil type
Vibro-replacement improves drainage and accelerates primary consolidation in silty clays

Stone Column Design for Weak Soils in Wilmington, Delaware

Parameter	Typical value
Typical column diameter	0.6 – 1.2 m (24 – 48 in)
Area replacement ratio	10% – 35%
Maximum treatment depth	20 m (65 ft) with vibro-replacement
Stress concentration factor (n)	2 – 5 depending on modular ratio
Settlement reduction factor (β)	0.3 – 0.6
Design bearing pressure (improved)	150 – 400 kPa (3000 – 8000 psf)

Typical technical challenges in Wilmington Delaware

At just 28 meters above sea level and flanked by two tidal rivers, Wilmington faces a dual challenge: shallow groundwater and flood-prone compressible soils. Overlooking a proper stone column design on a site with 10 to 15 meters of soft Delaware Bay sediment invites differential settlement that can shear utility connections and crack slab-on-grade floors within the first five years. Liquefaction also enters the equation; loose saturated sands at depth, if not densified by the column installation process, may lose strength during a design-level seismic event. The IBC 2021 seismic hazard maps place New Castle County in a moderate shaking zone, and a site-specific response analysis often confirms the need for ground improvement beneath critical structures. We incorporate post-installation verification—cone penetration tests between columns and full-scale load tests—to confirm that the treated ground meets the performance specification before structural work begins.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering1.sbs

Applicable standards: IBC 2021 Chapter 18 – Soils and Foundations, ASCE 7-22 – Minimum Design Loads and Associated Criteria for Buildings and Other Structures, ASTM D1586 – Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling of Soils, ASTM D2487 – Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System), FHWA NHI-16-072 – Ground Improvement Methods (Reference Manual)

Our services

Our stone column design packages for Wilmington projects range from feasibility assessments to full construction oversight, always calibrated to the site-specific stratigraphy of the Delaware Valley.

Geotechnical investigation planning

Targeted borings and CPT soundings to define the compressible layer thickness, groundwater level, and in-situ strength parameters needed for column design.

Stone column design and settlement analysis

Analytical and numerical modeling using Priebe's method and finite element software to optimize column spacing, diameter, and depth for your allowable settlement.

Construction quality assurance

On-site monitoring of column installation, modulus load testing, and post-treatment CPT verification to confirm the ground improvement meets the design intent.

Questions and answers

What soil conditions in Wilmington make stone columns a good choice?

Stone columns work well in the soft organic silts and loose alluvial sands common along the Christina and Brandywine river corridors. When the undrained shear strength exceeds 15 to 20 kPa and the compressible layer is more than 3 meters thick, the technique can reduce settlement significantly while providing a drainage path that accelerates consolidation.

How long does a stone column design and installation process take?

A typical design package, from field investigation through final calculations, takes two to three weeks. Field installation for a commercial building footprint often requires five to ten working days, depending on column depth and access constraints. Post-treatment verification testing adds another two to three days before foundation work can proceed.

What is the typical cost range for stone column design and installation in Wilmington?

For a commercial or industrial project in the Wilmington area, the combined design and installation cost generally falls between US$1,590 and US$5,490, depending on the treated area, column depth, and required replacement ratio. A site-specific proposal is always provided after reviewing the geotechnical data.

Do stone columns reduce liquefaction risk during earthquakes?

Yes, the vibratory installation process densifies loose granular soils surrounding each column, which increases the relative density and reduces the potential for excess pore pressure buildup during seismic shaking. Combined with the drainage function of the gravel column, this can significantly lower liquefaction susceptibility in saturated sands.

How do you verify that the stone columns are performing as designed?

We specify a combination of modulus load tests on single columns and column groups, along with CPT soundings performed between columns after installation. The post-treatment CPT data is compared directly with pre-treatment profiles to confirm the target improvement in tip resistance and sleeve friction has been achieved uniformly across the treated zone. More info.
